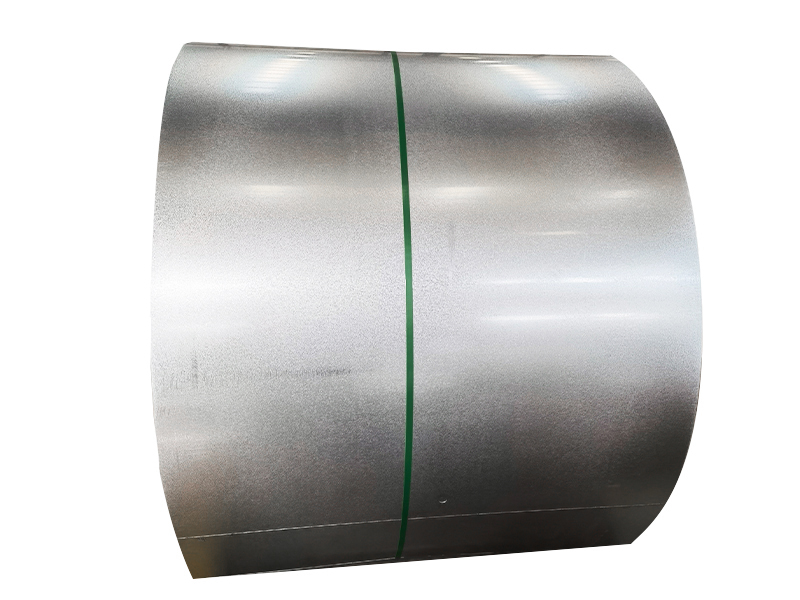

Galvanized coil
Galvanized coil: dip the steel sheet into the molten zinc bath to make the surface adhere with a layer of zinc. It is mainly produced by continuous galvanizing process, that is, the rolled steel plate is continuously immersed in the molten zinc plating bath to make galvanized steel plate; Alloyed galvanized steel plate. This kind of steel plate is also made by hot-dip method, but it is heated to about 500 ℃ immediately after being out of the tank to form an alloy film of zinc and iron. This galvanized coil has good coating adhesion and weldability.


Tel:+ 86 15065311629
WhatsApp: + 86 15065311629
Email : sherry@anyisteel.com

SHARE:

PRODUCT DESCRIPTION

Galvanized coil: dip the steel sheet into the molten zinc bath to make the surface adhere with a layer of zinc. It is mainly produced by continuous galvanizing process, that is, the rolled steel plate is continuously immersed in the molten zinc plating bath to make galvanized steel plate; Alloyed galvanized steel plate. This kind of steel plate is also made by hot-dip method, but it is heated to about 500 ℃ immediately after being out of the tank to form an alloy film of zinc and iron. This galvanized coil has good coating adhesion and weldability.



Thickness(mm)0.12-5.0thickness (   g/㎡)50-600
Width(mm)90-1500Surface   treatmentC/R/C5/A/O/U
Zinc layer weight(g/㎡)60~275Range   of applicationRefrigerator,   washing machine, air conditioning, microwave oven, lighting, TV, audio and   video
GradeQ195, Q235
SGCC, SGCH,SGC340 SGC400 SGC440   SGC490 SGC570
SGHC SGH340 SGH400 SGH440 SGH490   SGH540
DX51D DX52D DX53D DX54D
S220GD S250GD S280GD S320GD   S350GD S400GD S500GD S550GD
Surface treatmentRegular spangle,Minimum spangle, Zero spangle,   Big spangle
HardnessSoft hard(HRB60),medium hard(HRB60-85),full   hard(HRB85-95)
Surface TreatmentChromated/Non-Chromated, Oiled/Non-oiled, Skin   pass


Ordinary surfaceFAOrdinary     surface
Higher finish surfaceFBSmall   corrosion points, dark spots, band marks,
zinc particles, passivation defects   are allowed
High finish surfaceFCNo   corrosion spots are allowed, but minor   indentation, scratch, zinc flow   ripple, minor passivation defects are
  allowed in a small area, and the FA
 surface is maintained on the other   side at least


ct numberYield strengthTensile strengthElongation after fracture   ratio A80(%)(>=)
Nominal thickness
<=0.040.04-0.060.60-1.01.0-1.2
SGCC205270--

SGCD1-270-343638
SGCD2-270-363840
SG34024534020202020
SG40029540018181818
SG44033544018181818
